The Probr DJI O3
Email a friend
The Probr DJI O3
0
Review(s)
0
0
5
Write a Review
Your Price:
$35.00
Part Number:
F171
Choose Options
Arm Option
*
Arm Option
(1) 3.5 Inch Arms
(2) 4 Inch Arms (+$2.00)
Top Plate Option
*
Top Plate Option
(1) Standard
(2) Side Mount
Put me on the Waiting List
Quantity
+
-
Add to Cart
Description
Designer notes
Frame specs
Included parts
Source files
The Probr DJI O3 frame is an open-source 3" design which we provide the carbon fiber and hardware. 3D printed parts are not provided.
This frame is an open source frame. We provide the manufacturing to order and provide as a kit. Included are the carbon fiber parts and assembling hardware. 3D printed parts are not provided.
Most production times are about 3 - 5 days, but can be affected by work load at the time of the order. Any questions or concerns, please message us at
[email protected]
For any 3d printing needed for the frame, files can be found at the 3D Print files tab. Please check out https://www.brain3d.co/ and they can help with having anything you need printed.
Note: We are not the designer and are not responsible if the frame is not as you expected. We only cut the files provided from the designer or from the source files links. It's your responsibility to research the frame before purchasing. Frames are all custom cut and are started once an order is placed. If you have any questions or concerns, please message us at
[email protected]
, and someone will get back to you as soon as possible. It is also suggested to check the Facebook groups or contact the designer if you have any other questions.
If you cannot find what you are looking for and want to design your own, we would be happy to help out and provide a custom quote.
Files lasted updated with Cncmadness on June 24, 2024
Frame introduction

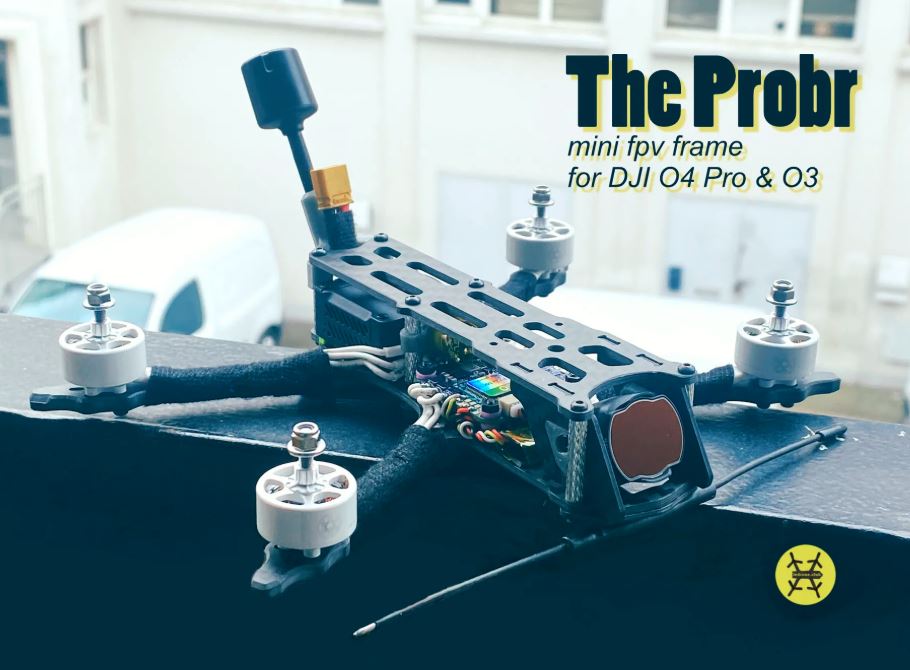

The Probr was designed around the DJI O3 video module. The goal was to have a frame with props out of view that's still very compact, solid and usable. This is the result.
The frame weights ~50g assembled (from 42g of carbon).
Frame Specs :
Props and frame out of view (to be checked on the 4" arms, fine for the others sizes).
ND filter suport for the O3 camera
3.5" or 4" inch separate arms.
9x9 and 12x12 motor mounts.
Dual 25.5x25.5 and 20x20 electronic mounts.
Camera plates with TPU inserts for camera dampening.

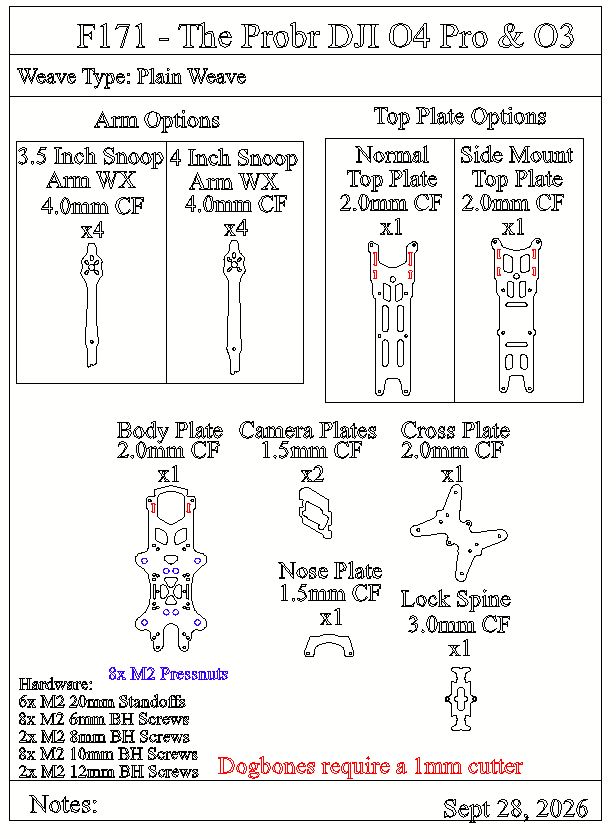

Carbon fiber parts included:
4 x arms (choose 3.5in, 4in according to your needs) : 4mm carbon fiber
2 x cam plates : 1.5mm carbon fiber
1 x nose plate : 1.5mm carbon fiber
1 x main plate : 2mm carbon fiber
1 x cross plate : 2mm carbon fiber
1 x spine : 3mm carbon fiber
1 x top plate : 2mm carbon fiber (choose between normal or side mount)
Hardware included:
6x M2 20mm standoffs
8x
M2 Pressnuts
(mount hole is 4.1 mm)
8x M2 10mm screws (arm interlock)
2x M2 8mm screws (front bottom standoffs)
2x M2 12mm screws (central bottom standoffs)
8x M2 6mm screws (rear bottom + top plate)
Source Files:
https://www.printables.com/model/385492-the-probr-micro-fpv-frame
